Remove the rear top cross connection

WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
Refer to REMOVING UPPER CROSS CONNECTION .
Refer to REMOVING THE TENSION STRUT AT THE SHOCK TOWER ON THE LEFT AND RIGHT .

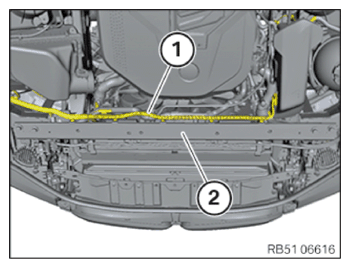

Unclip the vehicle wiring harness (1) from the rear top cross connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

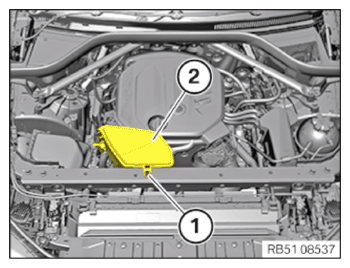

If fitted:
Release the screw (1) from the resonator (2).

Courtesy of BMW OF NORTH AMERICA, INC.

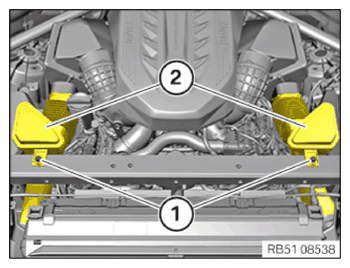

If fitted:
Release the screws (1) from the resonator (2).

Courtesy of BMW OF NORTH AMERICA, INC.

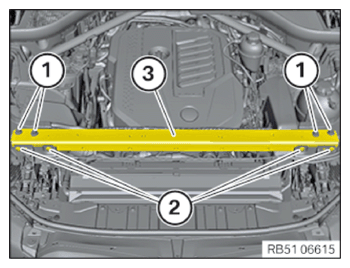

Loosen screws (1).
Loosen screws (2).
Thread out and remove the top rear cross connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.
