Removing the front underbody protection

WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

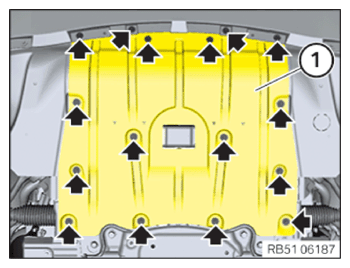

Remove screws (arrows).
Feed out and remove the front underbody protection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the front skid plate

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

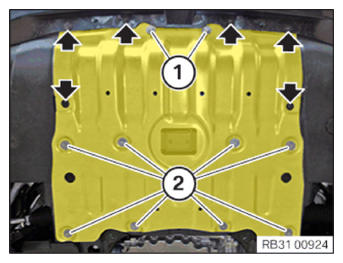

Remove screws (arrows).
Loosen screws (1) and (2).
Feed out and remove the front skid plate.

Courtesy of BMW OF NORTH AMERICA, INC.
