Install front underbody protection
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.

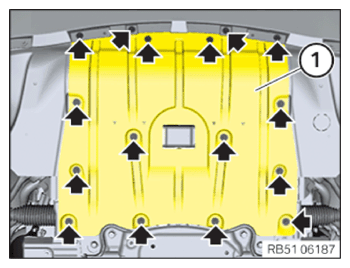

- Insert front underbody protection (1) and position correctly.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Undershield/frame Hexagon screw tightening torque 3 Nm Installing the front skid plate

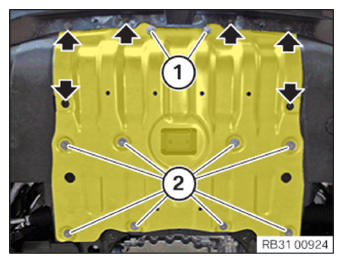

NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Feed in and position the front skid plate.
- Tighten down screws (2) and (1).TIGHTENING TORQUE SPECIFICATIONS
Skid plate at the front to front subframe M8 Tightening torque 19 Nm - Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield/frame | ||
|---|---|---|
| Hexagon screw | ||
| tightening torque | 3 Nm | |
