Installing both charge air coolers

WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

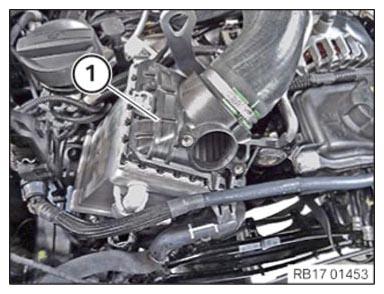

Insert and install the right-hand charge air cooler (1).

Courtesy of BMW OF NORTH AMERICA, INC.

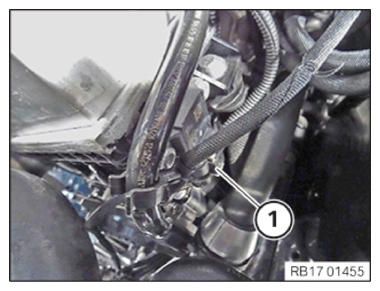

Position the charge air cooler (1) as shown.
Connect and lock the coolant line (2).
The coolant line (2) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

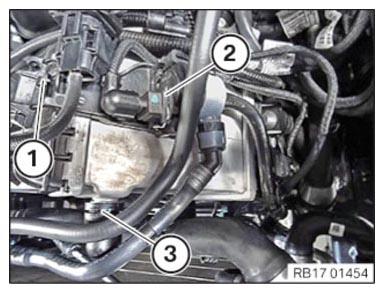

Attach the coolant line (1) to the right-hand charge air cooler (2).
Tighten down screw (3).

Tightening torques

Charge air cooler to holder
M6x35	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torques

Alternator to cylinder head
M8x85	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the coolant line (2).
The coolant line (2) must audibly engage.
Insert and install the holder (1).
The holder (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock clamp (2).
The clamp (2) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

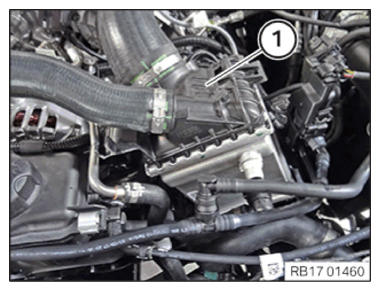

Insert and install the left-hand charge air cooler (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the charge air cooler (1) on the left as shown in the illustration.
Connect and lock the coolant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

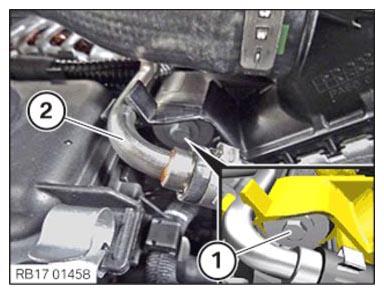

Feed in and install coolant line (2).
Tighten down screw (1).

Tightening torques

Charge air cooler to holder
M6x35	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torques

Alternator to cylinder head
M8x85	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Lock clamp (1).
The clamp (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check sealing ring (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the coolant line (3).
The coolant line (3) must audibly engage.
Feed in and install the tank vent valve with the bracket (2).
Ensure that the locking mechanism (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check sealing ring (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and install charge air line (2).
Tighten down screws (1).

Tightening torques

Connecting hose to charge air cooler
Hexagon screw M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
