Installing air conditioning compressor (engine removed)

WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

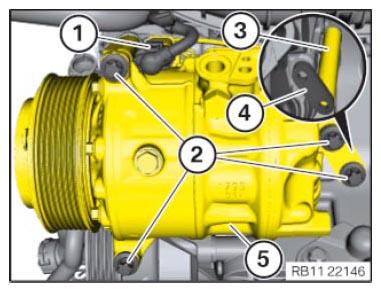

Position the air conditioning compressor (5) .
Position the spacer sleeve (3) .
Position the lug (4) .

Tighten down screws (2) .

TIGHTENING TORQUES SPECIFICATION

Air conditioning compressor to holder/engine
M8
	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1) and lock.

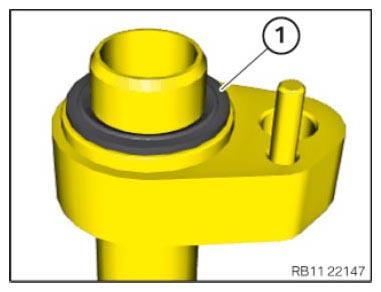

Replace the seals (1) of the suction and pressure line.
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

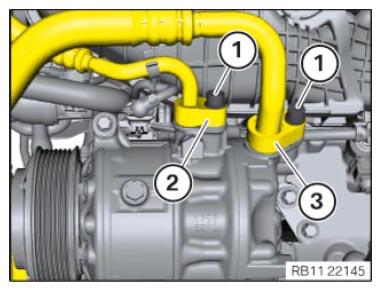

Position the intake pipe (3) .
Position the pressure line (2) .

Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Refrigerant line on air conditioning compressor
M8
	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
