Install the right and left unfiltered-air duct
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

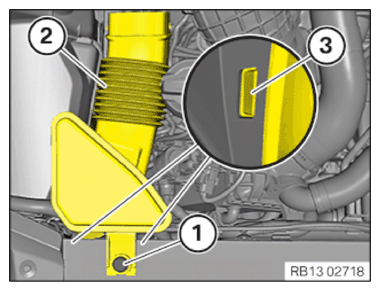

- Guide in and install the unfiltered-air duct (2) .
- Lock the unfiltered-air duct (2) in place in the air routing at the front (3) .
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION

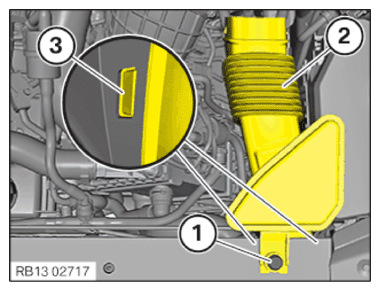

Resonator to rear top cross connection M8x30 screw tightening torque 10 Nm - Guide in and install the unfiltered-air duct (2) .
- Lock the unfiltered-air duct (2) in place in the air routing at the front (3) .
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Resonator to rear top cross connection M8x30 screw tightening torque 10 Nm
