Install the coolant expansion tank for the low-temperature coolant circuit
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

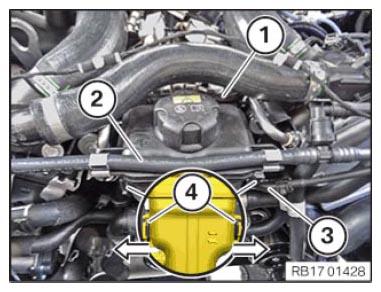

- Insert and install the coolant expansion tank (1)
for the low-temperature coolant circuit.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Ensure that the locking mechanisms (4)
engage audibly.
- Feed in and attach the coolant line (3)
.
- Feed in and attach the tank vent line (2)
.
- Feed in and attach cable (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
