Removing the lambda oxygen sensor

WARNING: High-voltage system .
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see: SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see: NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

Preliminary work

Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE RIGHT TENSION STRUT ON THE SHOCK TOWER .
Refer to REMOVING THE INTAKE FILTER HOUSING (TENSION STRUT ON SHOCK TOWER REMOVED) .
Refer to REMOVING CLEAN AIR PIPE AND RESONATOR .

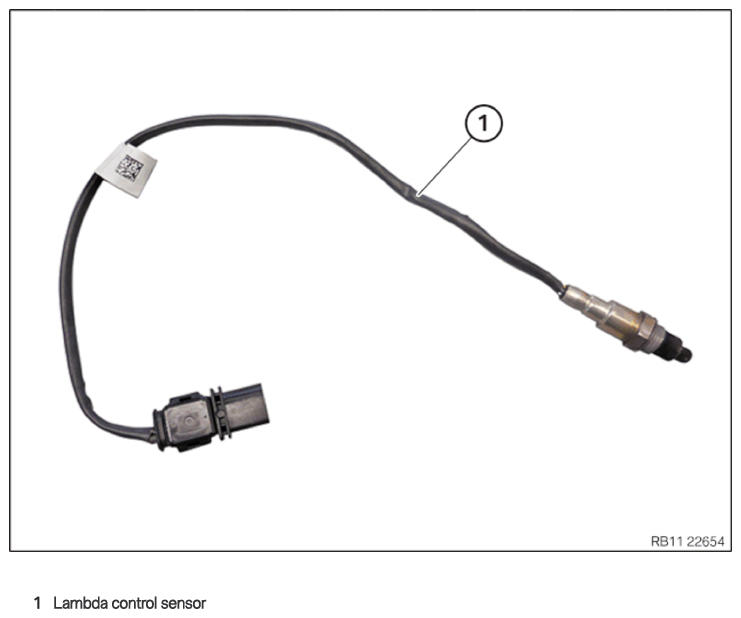

Lambda control sensor

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .

Do not pull on wires when disconnecting connectors and plug connections.

NOTE: The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.

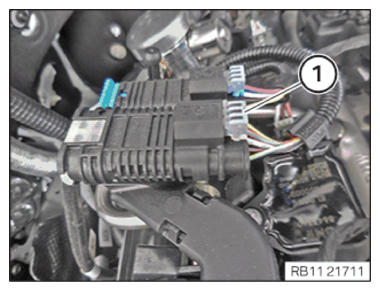

Unlock and release the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

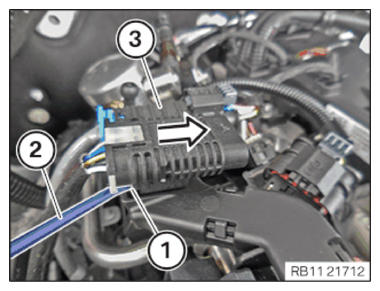

Unlock and release the lock (1) with a standard screw driver (2).
Guide out the connector (3) in the direction of the arrow and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

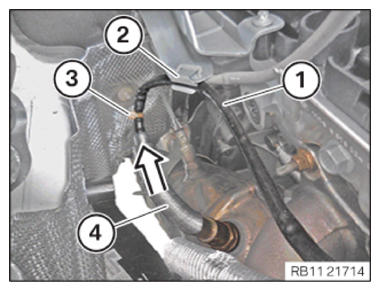

Release the line of the Lambda oxygen sensor (1) from the holder (2).
Release cable tie (3).
Guide out the heat protection shield (4) in the direction of the arrow and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

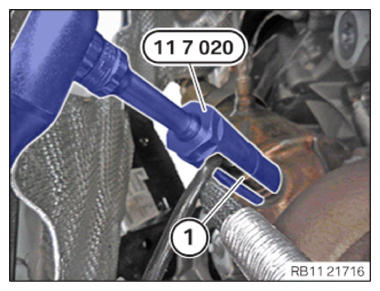

Release and remove the Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020) .

Courtesy of BMW OF NORTH AMERICA, INC.
