Installing rear door trim panel

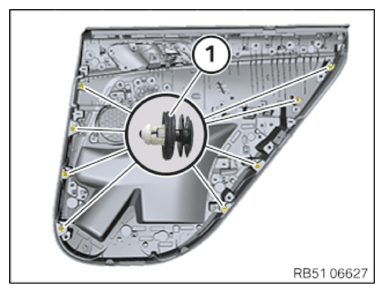

• Check the clips (1) for damage.
• Replace damaged or missing clips (1).

  The clips (1) must not be engaged. The disengaged state is shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the door trim panel.
• Attach the Bowden cable of the door opener (1) on the door lock (3).
• Attach the Bowden cable of the door opener (1) on the counter support (2).
• Connect connectors (4) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

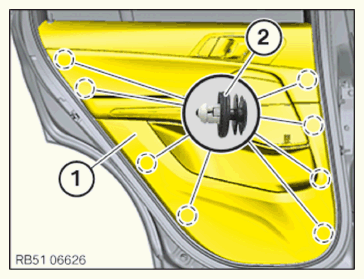

• Insert the door trim panel (1) on the window channel strip.
• Clip in the door trim panel (1) onto the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

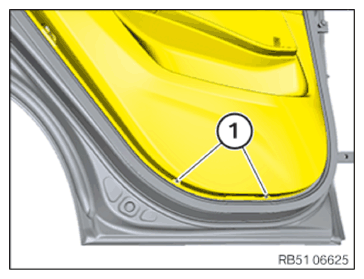

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw and mount cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw and mount cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

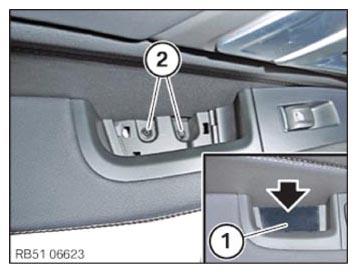

Tightening the screws in the rear recessed grip (G05/G07)

• Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

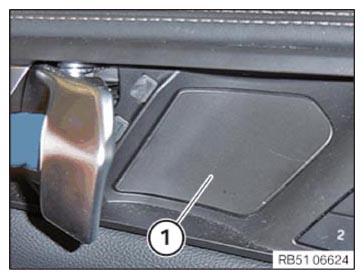

• Install cover (1).
