51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 491 Removing refitting/replacing rear engine undercover (all X5 models, 2019-2022)
>>
Installing underbody protection at rear
Installing underbody protection at rear

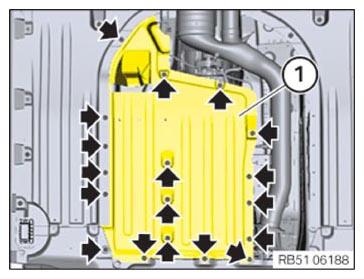

Insert underbody protection (1) and position correctly.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Undershield/frame
Hexagon screw
tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
