Installing the safety partition wall above
Prerequisite
Rear seat backrests are folded.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
Carry out the following steps with the help of 3 support persons:
2 persons are present in the vehicle interior, 2 persons are outside the vehicle.
Carry out the following steps with the help of 3 support persons:
2 persons are present in the vehicle interior, 2 persons are outside the vehicle.

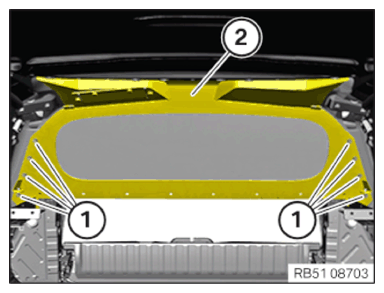

- Pass the safety partition wall (2) through the tailgate cutout to the persons in the vehicle interior.
- Carefully insert the safety partition wall (2) at the protective plate on the roof.
Make sure that the safety partition wall (2) bellow and at the top is supported by hand.
- Before screwing, put a drop of the screw locking agent on the thread of every screw (1).
ADHESIVE SPECIFICATIONS
| Screw lock Loctite Stick 243, medium strength | 10 ml, Bottle | 83192210339 |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Protective plate at the top to the holder | ||
|---|---|---|
| Hexagon screw M8x25 | tightening torque | 35 Nm |
NOTE:
Perform the steps on the right and left side.

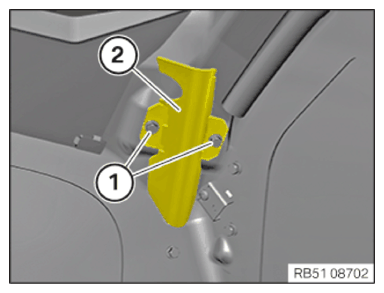

- Install the protective plate (2).
- Before screwing, put a drop of the screw locking agent on the thread of every screw (1).
ADHESIVE SPECIFICATIONS
| Screw lock Loctite Stick 243, medium strength | 10 ml, Bottle | 83192210339 |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Protective plate of wiring harness to roof | ||
|---|---|---|
| Hexagon screw M8x20 | tightening torque | 35 Nm |
Follow-up work
- Refer to PARTIALLY FASTENING THE PROTECTIVE PLATE TO THE ROOF .
- Refer to INSTALLING THE CENTER SAFETY PARTITION WALL .
- Refer to INSTALLING THE HEADLINING (LOWERED) .
- Refer to INSTALLING TRIM PANEL OF LUGGAGE COMPARTMENT LEFT AND RIGHT .
- Refer to INSTALLING THE SAFETY PARTITION WALL (REAR SHELF) .
- Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE C-PILLAR TRIM PANEL AT BOTTOM LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
- Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
- Refer to INSTALLING ALL GRAB HANDLES .
