Installing the ornamental grille of the bumper panel on the left and right side

Install the ornamental grille on the bumper cover on the side

NOTE: Description is for left component only. Procedure on the right side is identical.

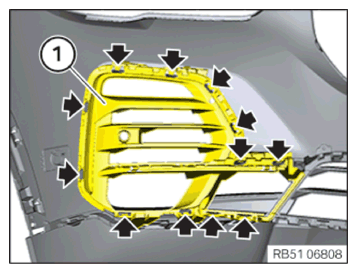

Correctly position the ornamental grille (1) and engage into latch mechanisms (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
G05/G07 only:

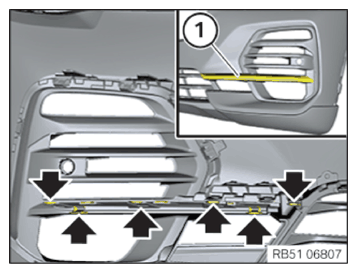

Attach trim (1) and engage into latch mechanisms (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
