If installed: Remounting the driver camera system (DCS)

Removing the driver camera system (DCS)

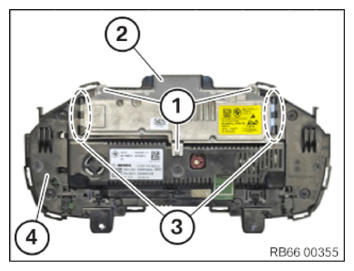

• Release the screws (1) on the Driver Camera System (DCS) (2).
• Feed out and remove the Driver Camera System (DCS) (2) upwards at the guides (3) of the instrument cluster (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the driver camera system (DCS)

• Feed the Driver Camera System (DCS) (2) into the guides (3) of the instrument cluster (4) from the top.
• Tighten the screws (1) on the Driver Camera System (DCS) (2).

Courtesy of BMW OF NORTH AMERICA, INC.
