Installing the rear flashing beacon

NOTE: Description is for left component only. Procedure on the right side is identical.

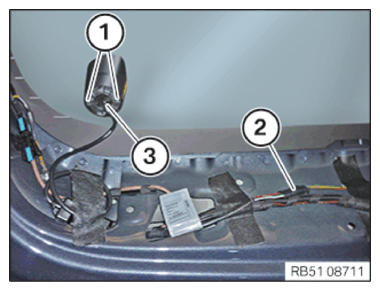

Install the flashing beacon (3) in the holder.
Tighten the screws (1).
Insert the cable and connect the connector (2).

G14368841

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING TRIM FOR THE SIDES OF THE REAR WINDOW FRAME .
Refer to INSTALLING WINDOW FRAME TRIM OF REAR DOOR .
