Remove the frame trim on the window frame of the front door
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE MIRROR TRIANGLE COVER . .
- Refer to REMOVING FRONT DOOR TRIM PANEL .
- Refer to REMOVING THE EXTERIOR MIRROR ON THE FRONT DOOR .
- Refer to REMOVING THE WINDOW CHANNEL STRIP ON THE OUTSIDE OF THE FRONT DOOR .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.

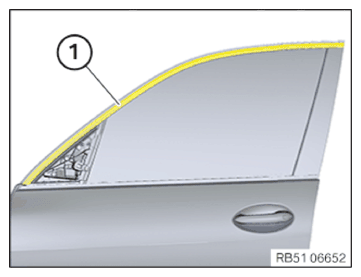

- Carefully lever out the frame trim (1) at front starting with the special tool 2 298 505 from the rubber window seal.
