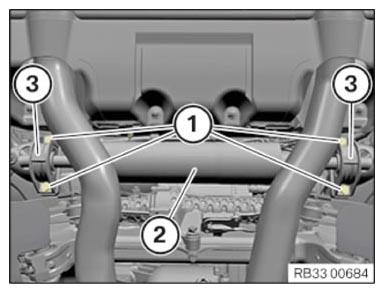

Securing the rear active stabilizer
- Swivel the active stabilizer (2) including the retainers (3) upwards.
- Position the retainer (3) on the right and left.
- Replace screws (1).
Parts: screw
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Retainer, anti-roll bar to rear axle support | ||
|---|---|---|
| M10 Replace screws. |
tightening torque | 56 Nm |
- Position wiring harness.
- Position the cable bracket from the top on the right retainer and the ground strap from the bottom on the right retainer.
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness for active stabilizer to right hand retainer | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
- Position the cable bracket on the rear axle support.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness for active stabilizer to right rear axle support | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
