Removing the holder for the cable tension relief

• Loosen clamp (1).
• Unlock the low-temperature coolant expansion tank (2) (arrow).
• Make sure that the coolant line is not  damaged.
• Unthread low-temperature coolant expansion tank (2) and put it on one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

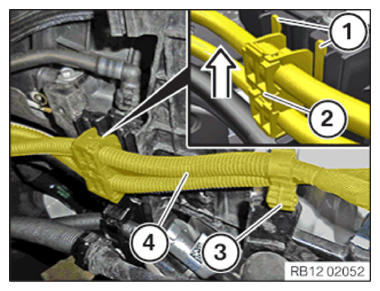

• Unlock the locks (1).
• Guide out the bracket (2) in arrow direction and remove.
• Loosen clamp (3).
• Remove the wiring harness section (4) and put to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Unthread and remove the bracket (2) for the tension relief.

Courtesy of BMW OF NORTH AMERICA, INC.
