Installing the front bottom wheel arch cover

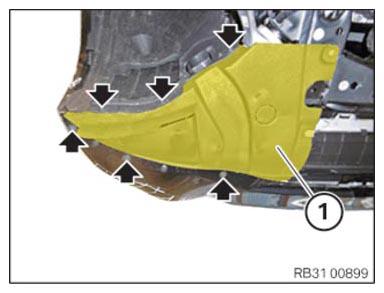

• Feed in the front bottom wheel arch cover (1).
• Tighten all bolts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Lower front wheel arch cover
Thermoplastic hexagon screw	tightening torque	2.6 Nm
