Installing the automatic transmission (all-wheel drive vehicle) (GA8HP75HZ)
NOTE:
RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
- Use only the approved transmission oil.
- Check the transmission oil level after completing the repair.
NOTE:
TECHNICAL INFORMATION
After completion of the work, program the control unit for the electronic gearbox control (EGS).
After completion of the work, program the control unit for the electronic gearbox control (EGS).
NOTE:
RISK OF DAMAGE
Damage of the flywheel and automatic transmission.
A non-horizontal fit during the removal and installation of the automatic transmission can lead to damage on the automatic transmission or flywheel.
Damage of the flywheel and automatic transmission.
A non-horizontal fit during the removal and installation of the automatic transmission can lead to damage on the automatic transmission or flywheel.

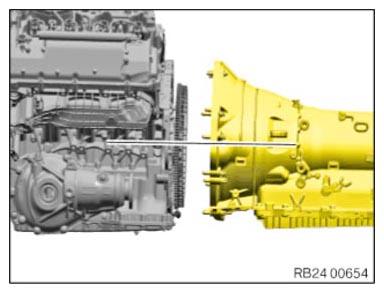

- Align the automatic transmission completely horizontal to the engine during the removal and installation.
- Check for correct alignment before tightening the transmission bolts.
- Align the automatic transmission horizontal to the engine before installation.

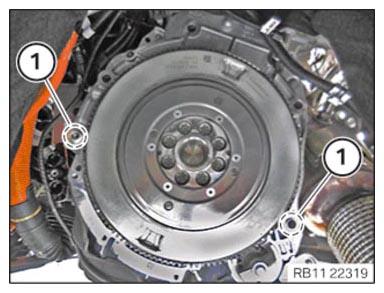

- Check for correct fit of lining sleeves (1).

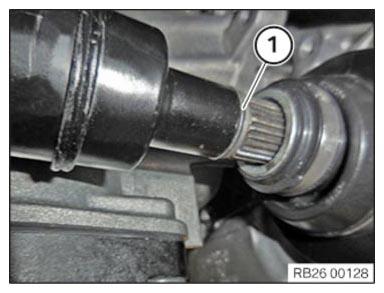

- Before installing the front prop shaft in the transfer box (VTG), replace the O-ring (1).
Parts: O-ring

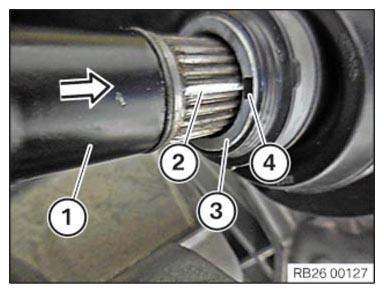

- Position the front prop shaft (1) on the output flange (3) of the transfer box (VTG).
- Align marks (2) and (4).
- Push front prop shaft (1) to stop in output flange (3) of transfer box (VTG).

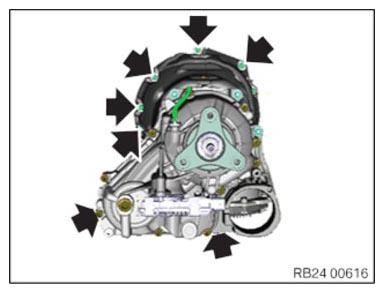

- Flange-mount the transmission on the transfer box (VTG).
- Replace the bolts (arrows).
Parts: Screws
- Join the bolts (arrows) and hand-tighten.

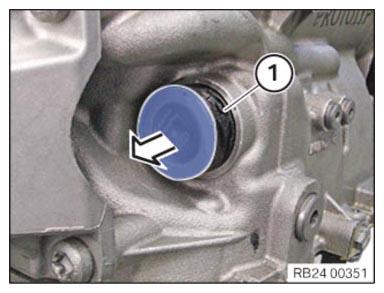

- Remove the special tool 0 494 213 (24 2 390)
in arrow direction from the sealing sleeve (1).

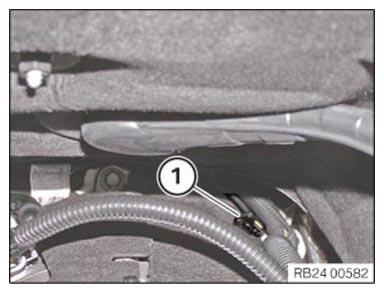

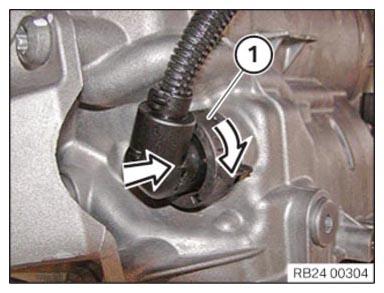

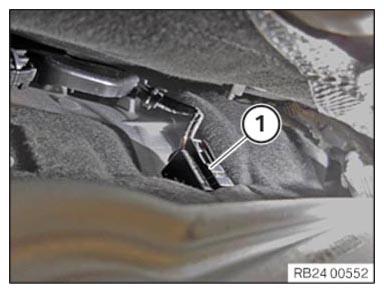

- Slide the connector (1) on and turn it to lock.

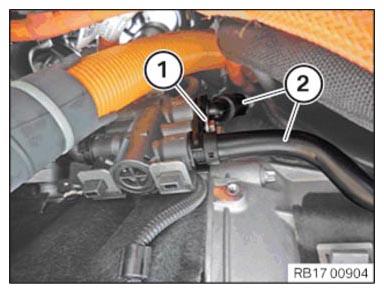

- Connect connectors (1) and lock.
- Install the line (2).

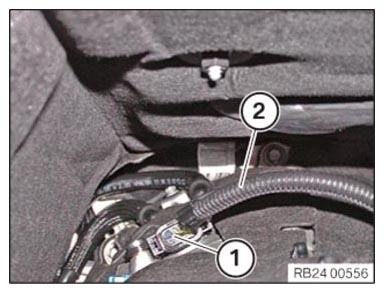

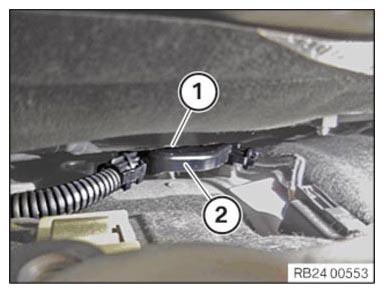

- Connect connectors (1) and lock.
- Install the connector (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Standard screw connection M6 Tightening torque 8 Nm - Connect connectors (1) and lock.

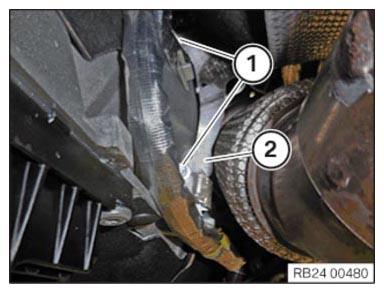

- Install the exhaust bracket (2).
- Replace screws (1).
Part: Screws
- Hand-tighten the screws (1).

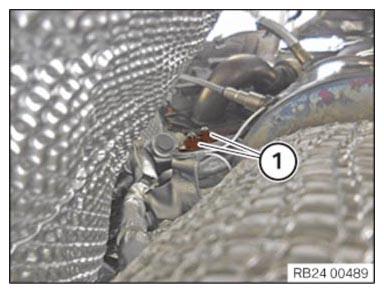

- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Catalytic converter to holder M8 Nut

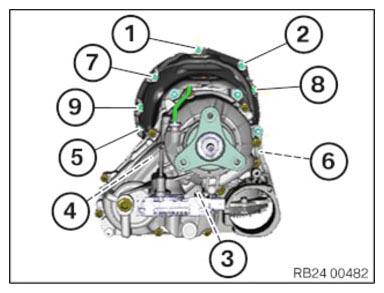

Replace nut.tightening torque 28 Nm - Tighten screws in the order (1) to (9).TIGHTENING TORQUE SPECIFICATIONS

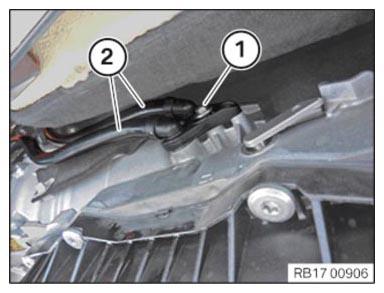

Transmission to engine M8 Tightening torque 19 Nm M12 Tightening torque 66 Nm - Feed in and install transmission oil lines (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil lines to thermostat/automatic transmission M6X25 Tightening torque 8 Nm - Feed in and install transmission oil lines (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS

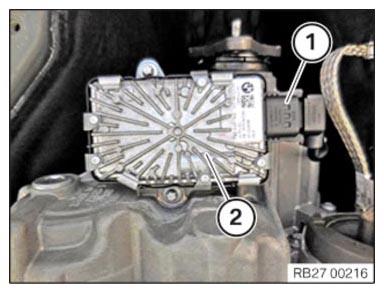

Transmission oil lines to thermostat/automatic transmission M6X25 Tightening torque 8 Nm - Connect the connector (1) to the VTG control unit (longitudinal torque distribution) (2).

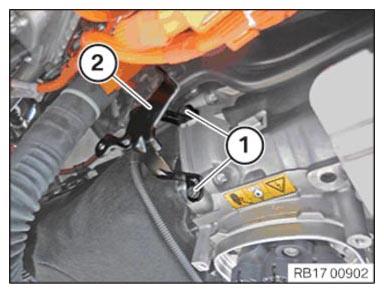

- Insert and install the holder (2).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS

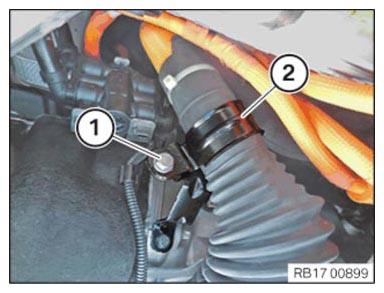

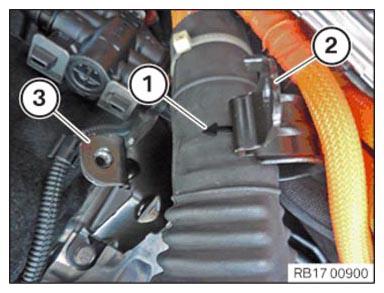

Holder of high-voltage cable to automatic transmission M6X12 Tightening torque 8 Nm - Position the high-voltage cable (1) on the holder (3) in the direction of the arrow.
- Insert and install the holder (2).
- Position holder (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS

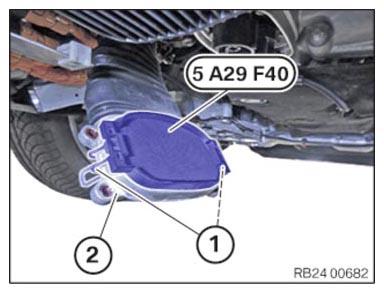

High-voltage cable to holder M6x12/M6x14 Tightening torque 8 Nm - Unlock the clamps (1).
- Remove special tool 5 A29 F40
from high-voltage connector (2).

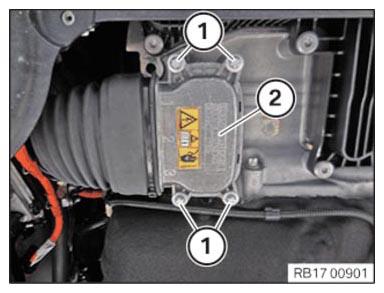

- Guide in and install the high-voltage connector (2).
- Replace screws (1).
Parts: Screws
- Hand-tighten the bolts (1) crosswise up to the high-voltage connector (2).
- Tighten screws (1) crosswise.TIGHTENING TORQUE SPECIFICATIONS
High-voltage cable to automatic transmission M6X25
Tighten screws in crosswise sequence.Joining torque 3 Nm Tightening torque 8 Nm WARNING: Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.

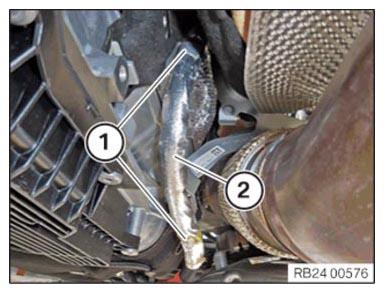

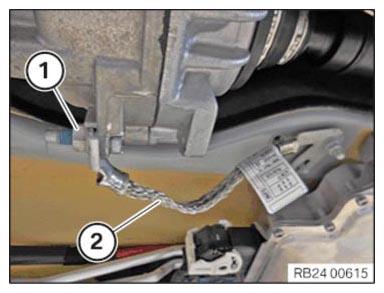

- Install the ground strap (2).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Ground strap to transmission or body M8 tightening torque 19 Nm - Clip the positive battery cable (2) into the clamps (1).
- Replace screws (1).
Parts: Screws

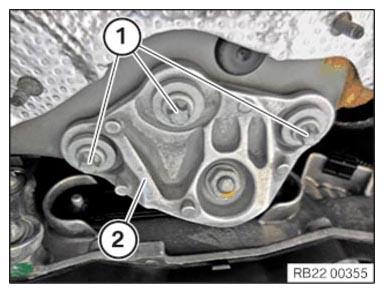

- Tighten the screws (1) on the transmission bearing support (2).TIGHTENING TORQUE SPECIFICATIONS

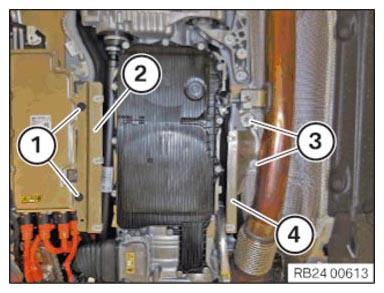

Transmission bearing support to body M8 Tightening torque 19 Nm - Install holder (2).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Retaining plates for vehicle underbody cover Sheet metal nut/plastic nut
Replace nuts.tightening torque 3 Nm - Install holder (4).
- Replace screws (3).
Parts: Screws
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Retaining plates for vehicle underbody cover | ||
| Sheet metal nut/plastic nut Replace nuts. |
tightening torque | 3 Nm |
