Removing the tensioning pulley for the coolant pump

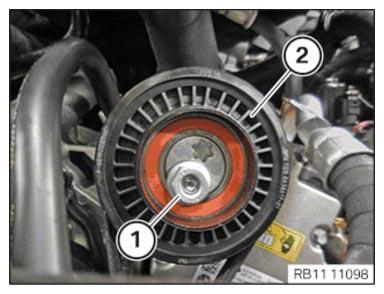

Loosen nut (1).
Feed out the tensioning pulley (2) and remove it.

G14473492

Courtesy of BMW OF NORTH AMERICA, INC.
