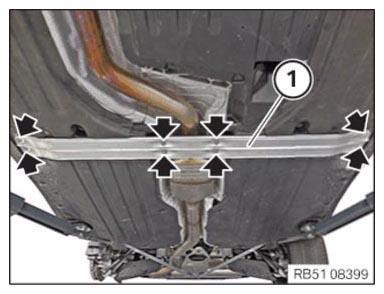

Remove the front connecting support on the tunnel
Remove the front connecting support on the tunnel
Remove screws (arrows).
Remove the front connecting support on the tunnel (1).
