Partially installing the air conditioning condenser

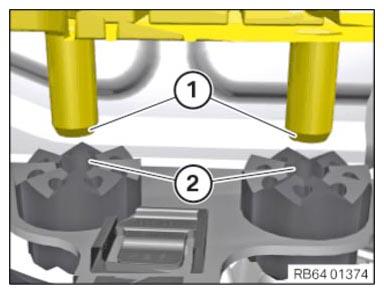

- Check rubber mount (2) for damage and, if necessary, replace it.
- Guide the lower guide pin (1) on the air conditioning condenser correctly into rubber mount (2).
- Position the air-conditioning condenser (4) correctly.
- Tighten down screw (3).TIGHTENING TORQUE SPECIFICATIONS

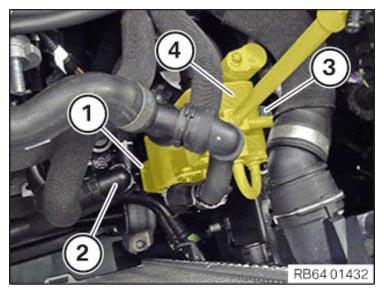

Air conditioning condenser holder on body Nut M6 tightening torque 8 Nm M6 screw tightening torque 8 Nm - Position the coolant hose (2).
- Fasten the hose support (1).
