Installing the undershield (tank cover) at right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing undershield (tank cover)

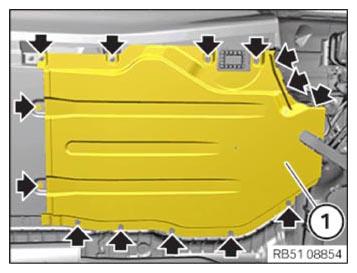

- Insert the undershield (1).
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield, side | ||
| Hexagon screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
