Installing the left undershield (tank cover)

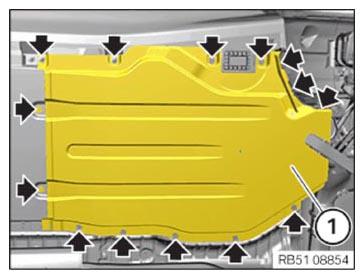

- Insert the undershield (1).
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield, side |
| Hexagon screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
