Removing the undershield (tank cover) on the left

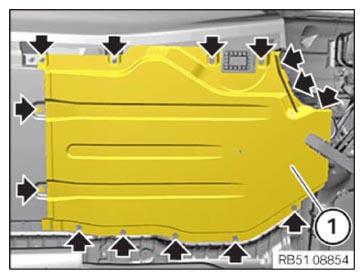

Unscrew all bolts and nuts (arrows).
Remove the underbody planking (1).

G14416390

Courtesy of BMW OF NORTH AMERICA, INC.
