Removing the undershield (tank cover) at right
NOTE:
Description is for left component only. Procedure on the right side is identical.

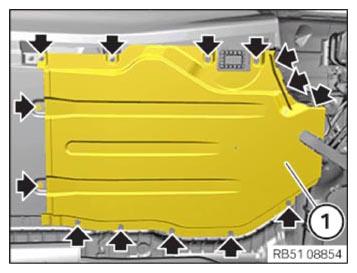

Removing the undershield (tank cover)
- Unscrew all bolts and nuts (arrows).
- Remove the underbody planking (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
