Partially removing the charge air line

WARNING: Hot surfaces  .
Risk of burning!

• Perform all work only on components that have cooled down.

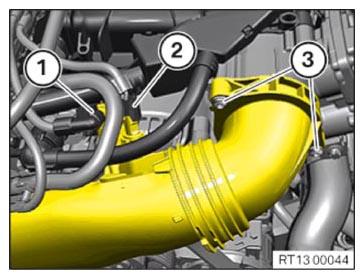

• Unlock plug connection (1) and disconnect.
• Unlock plug connection (2) and disconnect.
• Loosen screws (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

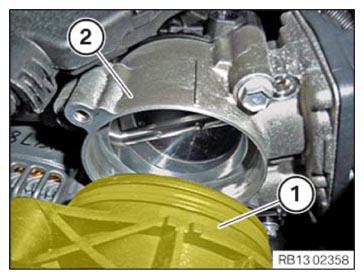

• Disconnect the charge air line (1) from the throttle valve (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
