Tightening end fitting

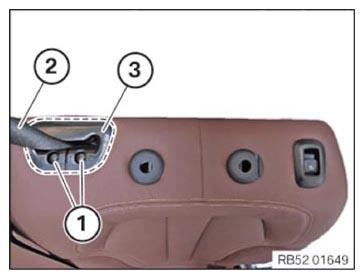

- Correctly feed seat belt (2) into belt feed trim (3).
- Correctly position and clip in belt feed trim (3) in marked area.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cover to seat frame | ||
| Screw | Tightening torque | 3 Nm |

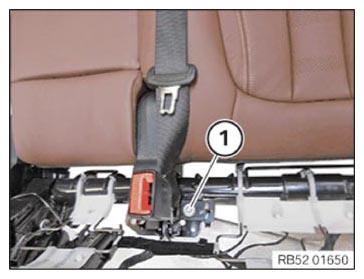

- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Seat belt strap fitting to seat mechanism | ||
| M10 Replace screw. |
tightening torque | 42 Nm |
