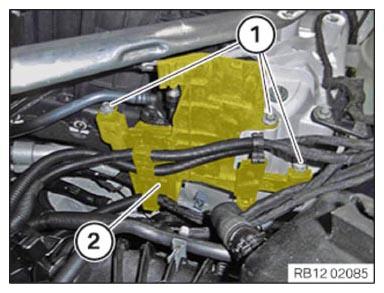

Installing the holder for tension relief of the cables
- Ensure that the holder (1) for the tension relief is correctly inserted into the bottom of the mount (2).
- Feed in the holder (2) for tension relief and position it correctly.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Tension relief to body | ||
| screw | Tightening torque | 8 Nm |

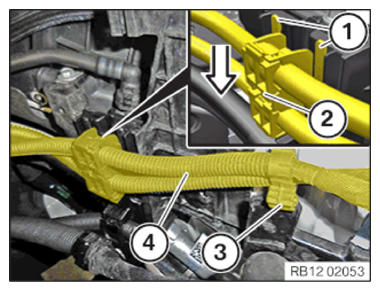

- Guide in the wiring harness section (4) and install.
- Secure clamps (3).
- Insert the bracket (2) in the direction of the arrow and install.
- Ensure that the locks (1) engage correctly.
- Make sure that the coolant line is not damaged.

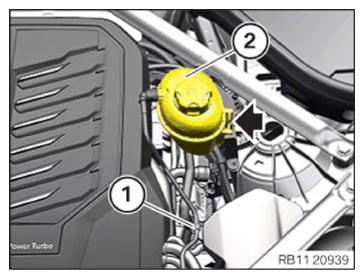

- Feed in and install low-temperature coolant expansion tank (2).
The low-temperature coolant expansion tank (2) must lock audibly (arrow).
- Secure clamps (1).
