Installing the backrest covering with the cushion

NOTE: Description is for right component only. The procedure on the left side is identical.

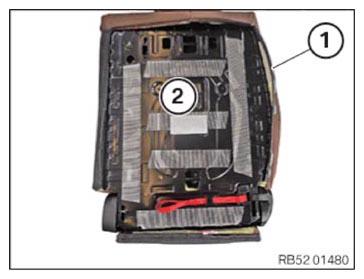

• Correctly position the backrest covering with the cushion (2) within the marked area (3).
• Connect plug connection (1) and lock.

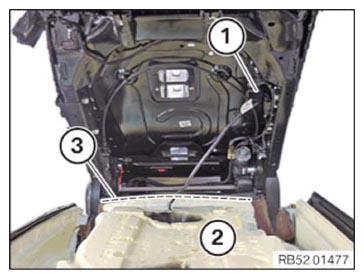

• Carefully apply the backrest cover with cushion (1) over the rear seat backrest (2), working from the front.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the backrest cover 1 on the rear seat backrest (2).

Courtesy of BMW OF NORTH AMERICA, INC.
