Installing rear panel of the rear seat backrest, left

NOTE: Description is for right component only. The procedure on the left side is identical.

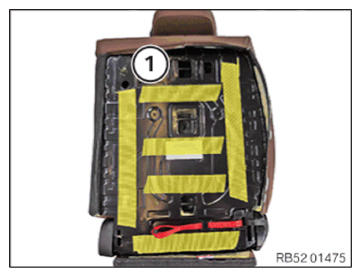

• Replace the marked adhesive strips on the rear seat backrest (1).

  Parts:  Adhesive strip

  Courtesy of BMW OF NORTH AMERICA, INC.

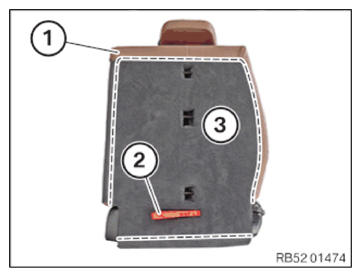

• Correctly position the rear panel of the rear seat backrest (3) and attach it at the adhesive strips.
• Clip in the emergency release (2).
• Correctly position and clip in the backrest covering (1) at the marked area.
