Remove the guide sleeves for the rear head restraint

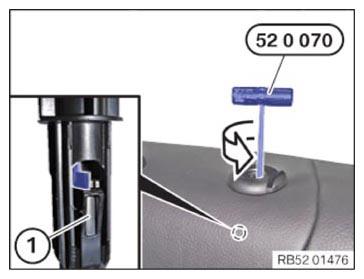

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: The description is for one component only. The procedure is identical for all further components.

• Detent (1) with the special tool
• Remove the guide sleeve upwards.

Courtesy of BMW OF NORTH AMERICA, INC.
