Remove rear spring strut
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

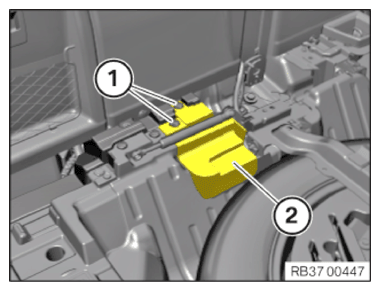

- Loosen the clips (1).
Remove cover (2) on side member.
NOTE:
RISK OF DAMAGE
Failure to comply with the specification .
Component damage .
Failure to comply with the specification .
Component damage .
- All specifications for installation and removal must be observed.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

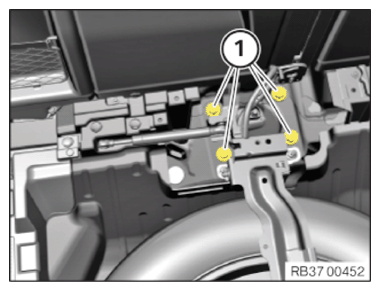

- Loosen screws (1).

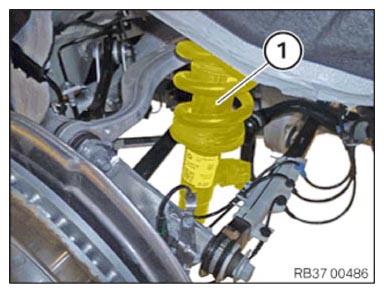

- Feed out the spring strut (1) towards the bottom and remove.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

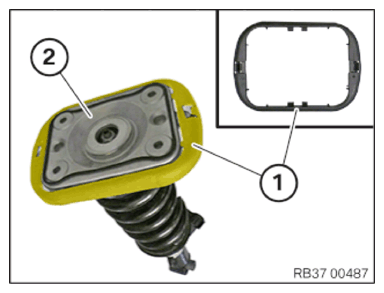

- Release the assembly ring (1) from the spring strut support bearing (2) and dispose of it.
Assembly ring (1) is no longer required.
