Prepare the spring tensioner
NOTE:
RISK OF DAMAGE
Damage of the coil spring .
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion) .
Damage of the coil spring .
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion) .
- Check the protective insert for wear or damage and if necessary, replace the protective inserts.
Prepare pressure plates
- Mount the special tool 2 359 293 to the special tool 2 318 833.
Prepare special tool 2 318 833 2 x and always use with the protective insert!
- Clamp special tool 2 213 022 (31 3 340) in vice.

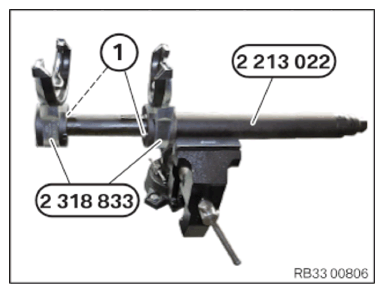

- Fit the special tools 2 318 833 from the top on to the special tool 2 213 022 (31 3 340).
The retaining bolts (1) must engage tangibly and audibly.
- Check the position of the special tools 2 318 833 and correct as needed.

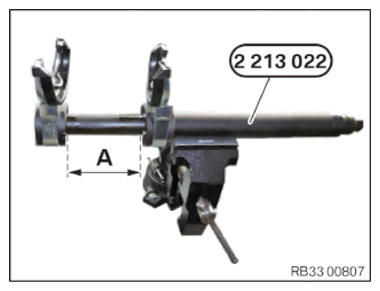

- Adjust the special tool 2 213 022 (31 3 340) to dimension (A).
Dimension (A) = 125-130 mm
