Installing the electric coolant pump for the charge air cooler and the air conditioning condenser

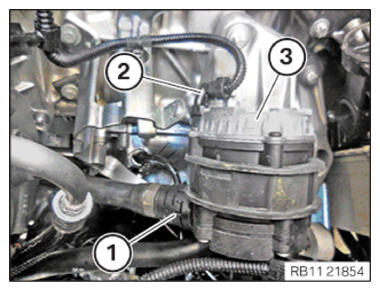

• Position electric coolant pump (3)  .
• Connect and lock the connector (2)  .
• Make sure the connector (2)  engages audibly.
• Connect and lock coolant line (1)  .
• Make sure that the coolant line (1)  engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

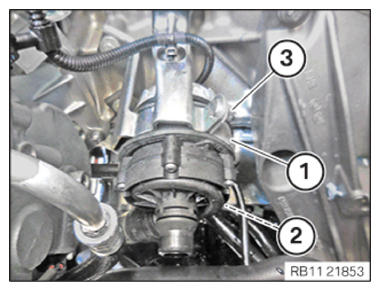

• Insert and install the retainer (1)  .
• Make sure the retainer (1)  is correctly positioned on the bracket (2)  .
• Tighten nut (3)  .
  TIGHTENING TORQUES SPECIFICATION



  Electric coolant pump to holder
  M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

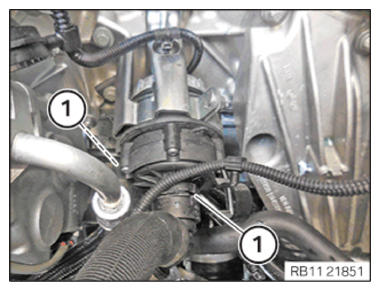

• Connect and lock coolant line (1)  .
• Make sure that the coolant line (1)  engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING HEAT MANAGEMENT MODULE .
• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING THE TANK VENT VALVE .
• Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to FILLING THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to CHECKING COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
