Install the rear top cross connection

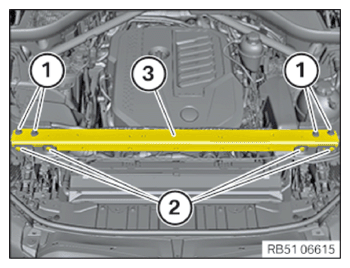

• Feed in and position the rear top (3) cross connection.
• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear cross connection at the top of the hood lock support
  screw
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear top cross connection to wheel arch carrier support
  M10x35 screw
  	Tightening torque	56 Nm

• If fitted:

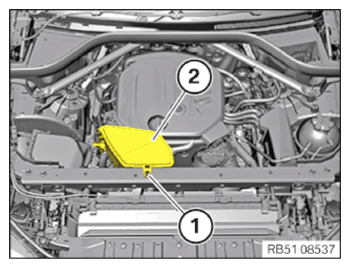

  Position the resonator (2) and tighten the screw (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Resonator to rear top cross connection
  M6x20 screw
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• If fitted:

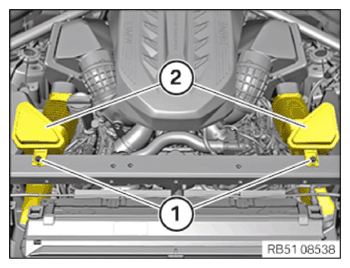

  Position the resonator (2) and tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

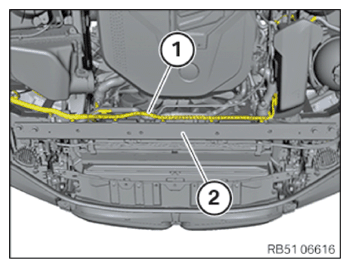

• Clip the vehicle wiring harness (1) onto the rear top cross connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
• Refer to INSTALLING UPPER CROSS CONNECTION  .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
