Installing the frame trim on the window frame of the rear door

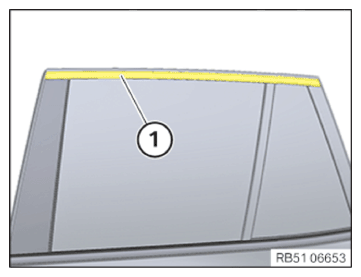

• Correctly position the frame trim (1) and lock on the rubber window seal staring from the rear.

NOTE: For better installation, coat the rubber window seal with water.

Courtesy of BMW OF NORTH AMERICA, INC.
