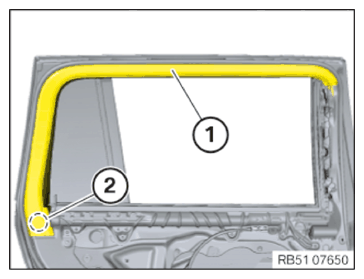

Installing the cover on the inside of the window frame at the rear

Start from the rear and connect the cover (1) to the door frame.
Clip in cover (1) into clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly feed in cover on window frame (1) into the gap of the rubber window seal (2).
Make sure that the cover (1) is correctly fitted on the door weather strip.

Courtesy of BMW OF NORTH AMERICA, INC.

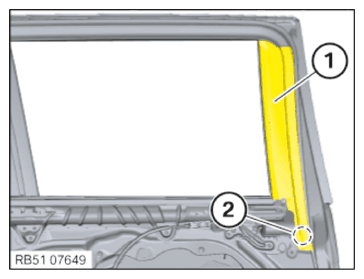

Only for G07 with optional equipment roller sunblind:
Start from the rear and connect the cover (1) to the door frame.
Clip the cover into the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

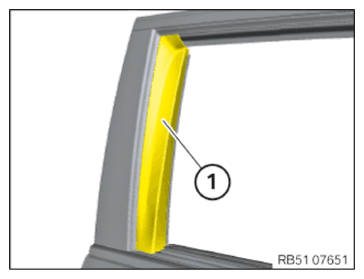

Correctly position the cover (1) on the door frame and clip in.

Courtesy of BMW OF NORTH AMERICA, INC.
Start from the top and connect the cover (1) to the door frame.
Clip the cover into the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly feed in cover on window frame (1) into the gap of the rubber window seal (2).
Make sure that the cover (1) is correctly fitted on the door weather strip.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
