Installing the head restraint
NOTE:
Description is for left component only. Procedure on the right side is identical.

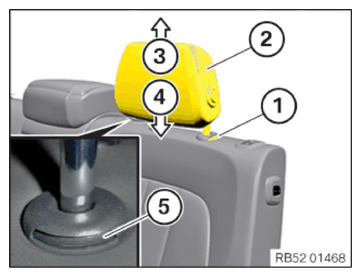

- Insert head restraint (2) from above in arrow direction (4).
- Press lock (1) and (5) and position the head restraint in the end position in arrow direction (4).
- Ensure that head restraint (2) fits correctly on lock (1) and (5).
