Remove headlining
Preliminary work
- Refer to REMOVE THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
- Refer to REMOVE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT (ALL EQUIPMENT VERSIONS) .
- Refer to REMOVING THE LEFT AND RIGHT BOTTOM C-PILLAR TRIM PANEL .
- Refer to REMOVING THE REAR DOOR SILL COVER STRIP (ON ELECTRICAL REAR SEAT) .
- Refer to REMOVING LEFT AND RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT D-PILLAR TRIM PANEL .
- Refer to REMOVING THE LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to REMOVING THE TOP LEFT AND RIGHT B-PILLAR TRIM PANELS PARTIALLY .
- Refer to REMOVING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to REMOVING LEFT AND RIGHT SUN VISORS .
- Refer to REMOVING THE COUNTER SUPPORT FOR THE SUN VISOR ON THE LEFT AND RIGHT .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING ALL GRAB HANDLES .
- Refer to REMOVING THE HOLDER FOR THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
Prerequisite
The front seats have been fully adjusted towards the bottom.
The front seat backrests have been fully adjusted towards the rear.
The rear seat backrest is folded toward the front.
NOTE:
RISK OF DAMAGE
Fold the headlining .
Bending of the headlining can result in the need for the headlining to be replaced .
Fold the headlining .
Bending of the headlining can result in the need for the headlining to be replaced .
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.
- Unlock plug connection (1) and disconnect.
- Loosen the headlining at the clips (2).

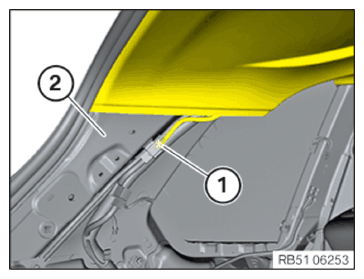

- Unlock the plug connection (1) in the D-pillar (2) area at left and disconnect.

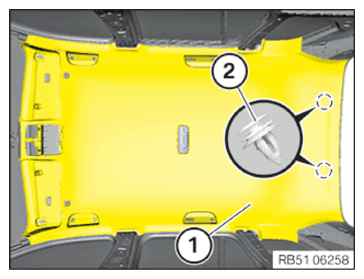

- Loosen the headlining (1) at the clips (2).
- Feed out the headlining (1) downwards on the respective edge protection and place it on the seats.

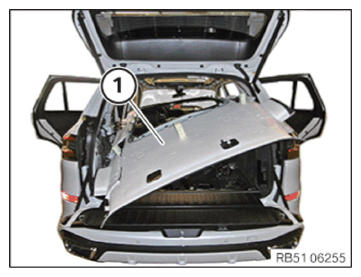

- Remove the headlining (1) from the vehicle as shown.
