Install Rear Quarter Panel On Right

Further information is available.

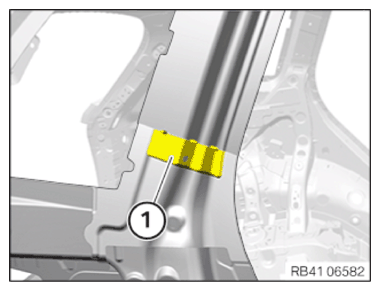

• Install reinforcement plate (1) and attach through welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

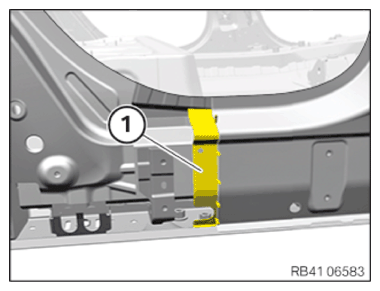

• Install reinforcement plate (1) (universal) and attach through welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

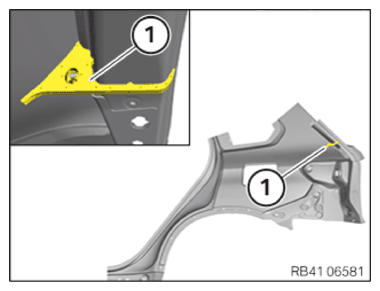

• Clean bonding surface of the cavity sealing (1) with cleaning agent R1.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (ALL X5 MODELS, 2019-2022) .
• Apply sealant D2 to cavity sealing (1).
  CONSUMABLE SPECIFICATIONS



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install cavity sealing (1) in the new part.
• Immediately before installation of the side panel, apply sealant D2 on the cavity sealing (1) (bonding surface to body).
• Pre-clean bonding surfaces of reinforcement plate (1) and the body with cleaning agent R2.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R2

  500 ml

  83190417324

• Pre-clean bonding surfaces of reinforcement plate (1) and the body with cleaning agent R1.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply K5 adhesive to the reinforcement plate (1).
  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  50 ml

  83192158654

  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  195 ml

  83195A59935

• Install reinforcement plate (1).
• Pre-clean bonding surfaces of reinforcement plate (1) and the body with cleaning agent R2.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R2

  500 ml

  83190417324

• Pre-clean the bonding surfaces of the reinforcement plate (1) and the body using a solvent cleaner R1.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply K5 adhesive to the reinforcement plate (1).
  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  50 ml

  83192158654

  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  195 ml

  83195A59935

• Install reinforcement plate (1).
• Pre-clean bonding surfaces (1) and (2) on vehicle and on new part with cleaning agent R2.
• Clean bonding surfaces (1) and (2) on vehicle and new part with cleaning agent R1.
• Apply adhesive K5 to the bonding surfaces (1) and (2).
  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... INSTALLING CAVITY SEALING (EXPANDED) (ALL X5 MODELS, 2019-2022) .
• Apply sealant D2 to the cavity sealing elements (3).
  CONSUMABLE SPECIFICATIONS



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the side panel with the help of a second person.

  During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.

• Align the side wall in the areas of the separating cuts and secure it with locking pliers.
• Tighten the nuts on the reinforcement plate.
  CONSUMABLE SPECIFICATIONS



  Plastic nut

  018 mm

  51161943122

  CONSUMABLE SPECIFICATIONS



  Plastic nut

  022 mm

  07147169847

• Rivet the side panel in area (1) with blind rivets N3.
  CONSUMABLE SPECIFICATIONS



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach separating cut (1) and reinforcement plate (2) through welding.

  Only weld the separating cut and reinforcement plate after installation of the punch rivet.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach separating cut (1) and reinforcement plate (2) through welding.

  Only weld the separating cut, reinforcement plate and area (3) after installation of the punch rivet.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet the side panel in the areas (1) to (3) with punch rivets N4.

  Area	Number
  1	8
  2	15
  3	4
  4	3

  CONSUMABLE SPECIFICATIONS



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet the side panel in the areas (1) and (2) with punch rivets.

  Area	Description	Number
  1	N5	6
  2	N4	7

  CONSUMABLE SPECIFICATIONS



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATIONS



  Punch rivet N5  Ø 5 mm; 5 mm long

  83192158079

• Also apply K5 adhesive (2) to the outer wheel arch section (3).

  (1) = side panel wheel arch

  Courtesy of BMW OF NORTH AMERICA, INC.

• Flange the edge of wheel arch (3) of the side panel flush to the outer wheel arch section.
• Do not create sharp edges when flanging because the crimping edge may otherwise begin to tear.
• Fill crimping edge fully with adhesive.

  Dimension (a) = 5 mm

  (1) = adhesive

  (2) = rear quarter panel

• Seal the new part with sealant D2 in the same way as for standard production.

  Seal with sealant D2 in the area (3) according to the standard.

  CONSUMABLE SPECIFICATIONS



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

• Complete welding work at the C-pillar and on the water channel. Avoid excessive heat input on the adjacent adhesive areas.

  Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
• Seal the EMC screw with the sealant.
  CONSUMABLE SPECIFICATIONS



  Sealant D2

  290 ml

  83425A547B9

• Install 3 EMC screws in the area (1) after the adhesive has hardened.
• Install 1 additional EMC screw in the area of the door sill.
  CONSUMABLE SPECIFICATIONS



  screw  EMC screw, SF Plus, M5x15

  83190301639

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
