Install Carrier Support

Further information is available.

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATIONS

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATIONS

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive (K1) to the bonding surfaces.
ADHESIVE SPECIFICATIONS

Body adhesive K1 195 ml 83190413015
Install the new parts with an alignment bracket or a universal mount.

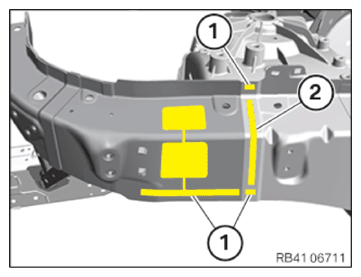

Rivet the new part and engine mount (2) in area (1) with blind rivets N2.

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

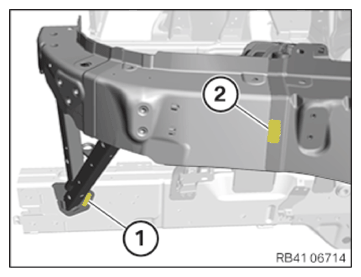

Rivet the new part in area (1) with blind rivets N2.

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00 Installation of a cavity sealing (not expanding)

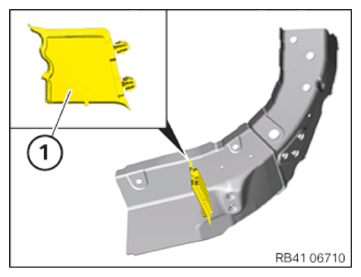

Apply sealant D1 to the cavity sealing (1). Install the cavity sealing (1) on the new part.
CONSUMABLE SPECIFICATIONS

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATIONS

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATIONS

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive (K1) to the bonding surfaces.
ADHESIVE SPECIFICATIONS

Body adhesive K1 195 ml 83190413015
Apply sealant D1 to the cavity sealing.
Install new part.

Rivet new parts in the areas (1) with blind rivets N2.

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

In area (2), use blind rivet N1.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

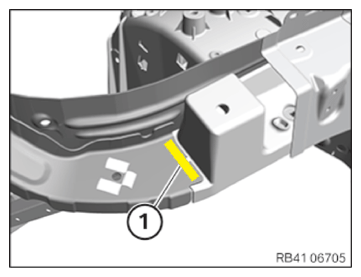

Rivet the new part in area (1) with blind rivets N1.

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

In areas (2) and (3), use a blind rivet N2.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

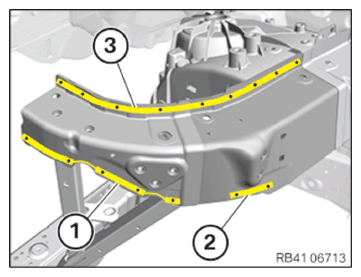

In areas (1) to (3), rivet the new parts with punch rivets N5.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Punch rivet N5	83192158079
Ø 5 mm; 5 mm long

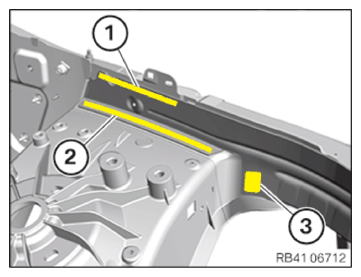

After the adhesive has hardened in areas (1) and (2), install one EMC screw in each case.

CONSUMABLE SPECIFICATIONS

screw	83190301639
EMC screw, SF Plus, M5x15

Courtesy of BMW OF NORTH AMERICA, INC.

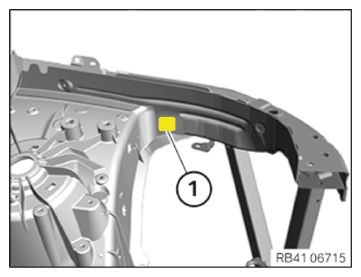

Install an EMC screw once the adhesive has hardened in area (1).

CONSUMABLE SPECIFICATIONS

screw	83190301639
EMC screw, SF Plus, M5x15

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
