Install the drive for the glass slide/tilt roof panel

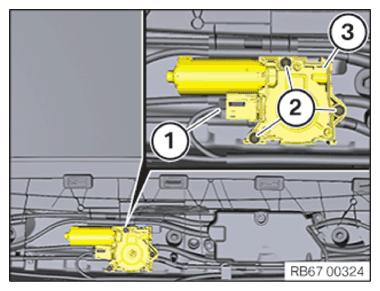

• Correctly position the drive for the glass slide/tilt roof panel (3) that was marked during removal.

  The drive for the glass slide/tilt roof panel (3) must not be mixed up with the drive for the roller sunblind, since then a crush guard is no longer present  .

• Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Drive on body
  Screw	tightening torque	5 Nm

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

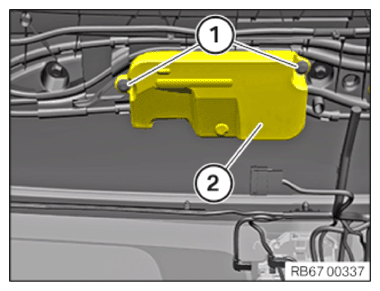

• Guide in and install cover (2).
• Install the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HEADLINING (WITH PANORAMA ROOF) (LOWERED) .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
• Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING LEFT AND RIGHT C-PILLAR TRIM PANELS AT THE BOTTOM .
• Refer to INSTALLING LEFT AND RIGHT C-PILLAR TRIM PANELS AT THE BOTTOM (3RD ROW OF SEATS) .
• Refer to INSTALLING THE REAR DOOR SILL COVER STRIP (ELECTRICAL REAR SEAT) .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
