Removing the drive for rear seat length adjustment

Prerequisite

The rear seat is folded forward.

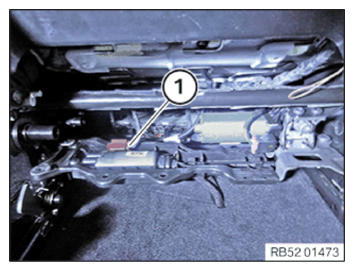

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the retaining tabs (1) and remove the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the guide tube (1) from the carrier plate (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully bend the guide tube (1) up until the guide tube can be pulled out of the drive (2).

  Do not bend the drive (2) too far up; otherwise, the guide pins in the carrier plate (3) may be damaged.

• Feed the guide tube (1) and drive (2) out of the carrier plate (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
