Removing the center safety partition wall
Prerequisite
Rear seat backrests are folded.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

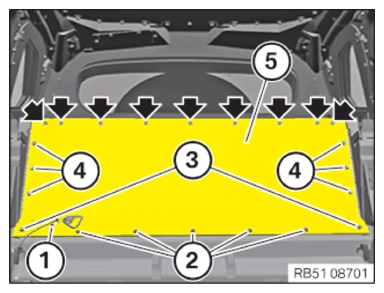

- Release the nut (1) and set the holder to the side.
- Loosen nuts (2).
- Release screws (3) and (4).
- Remove screws (arrows).
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Feed out the safety partition wall (5) and remove it.
