Securing the anti-roll bar link on the left and right to the anti-roll bar
NOTE:
Perform the steps on the right and left side.

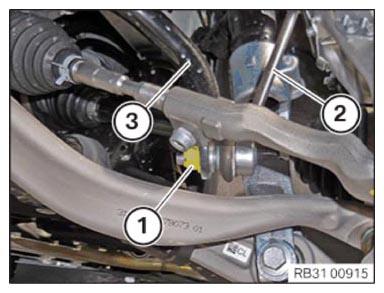

Securing the anti-roll bar link to the anti-roll bar
- Position the anti-roll bar link (2) on the anti-roll bar (3).
- Replace nut (1).
Parts: Nut
- Tighten nuts (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Anti-roll bar link to anti-roll bar | ||
| M12 Replace nut. |
Tightening torque | 100 Nm |
