Removing intake silencer housing

Prerequisite

Ignition is switched off.

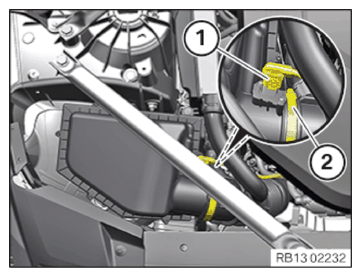

• Unlock and loosen connector (1).
• Unfasten clamp (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

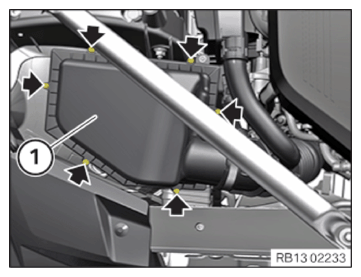

• Remove screws (arrows).
• Remove the upper section of the intake filter housing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

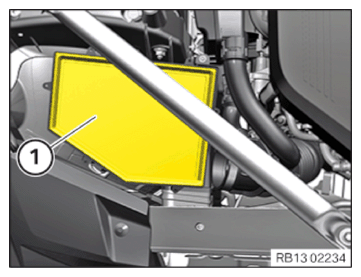

• Feed out air filter insert (1) and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

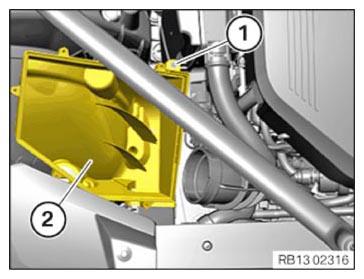

• Loosen screw (1).
• Pull lower section of intake filter housing (2) upwards out of rubber mounts, feed out, and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.
