Installing Roof function center (FZD)

• Connect connectors (1) and lock.
• Clip the cable for the roof function center (FZD) (2) into the cable clip.

  Courtesy of BMW OF NORTH AMERICA, INC.

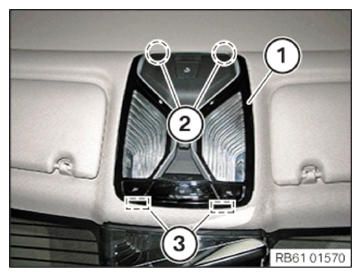

• Thread the roof function center (FZD) (1) into the guides (3).
• Engage the Roof function center (FZD) (1) with the clamps (2) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

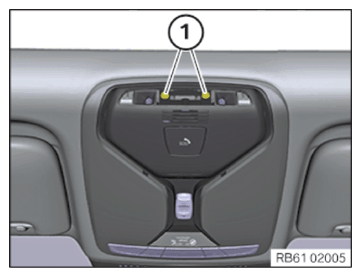

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Roof switch center
  	tightening torque	1.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

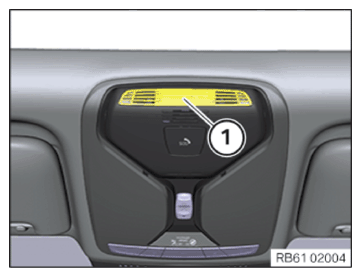

• Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INITIALIZE PANORAMA GLASS ROOF .
• Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
