Installing the 12 V battery

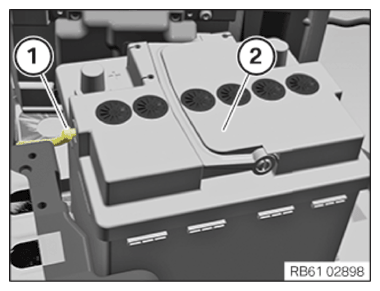

• Install the 12 V battery (2).
• Connect the vent hose (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

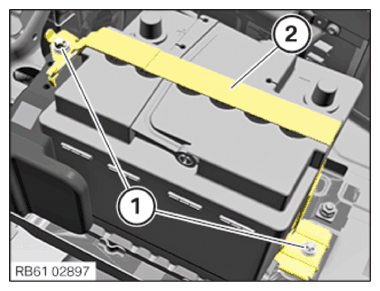

• Position the battery carrier (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Battery carrier to body
  Screw	tightening torque  10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

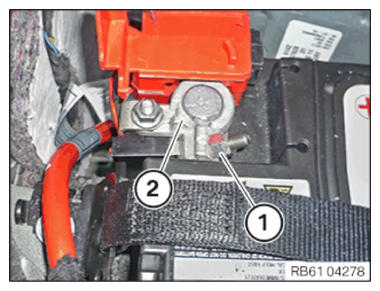

• Join the positive battery terminal (2) to the battery terminal.
• Tighten the slanted nut (1) at the positive battery terminal (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Negative battery terminal
  Nut	tightening torque  5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

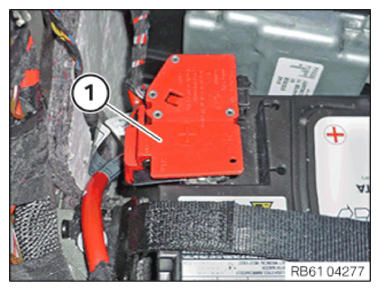

• Close the positive terminal cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CHECKING THE VENT HOLES OF THE BATTERY .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
