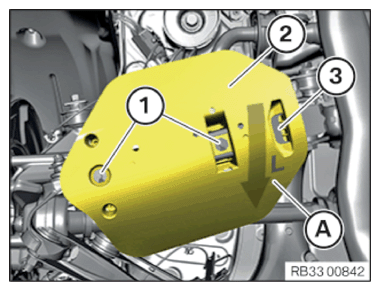

Install the cover of the camber control arm

• Insert the cover of the camber control arm (2) on the camber control arm (3) and place it into position.
  NOTE: Note the direction of installation (A). The arrow shows the direction of travel.
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Cover to camber control arm
Thermoplastic oval-head screw	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
